Admin Dashboard Site Map

Hierarchical map of every page in the internal admin dashboard (admin_dashboard/ SPA). Companion to the consumer site-map.md, the marketing marketing-site-map.md, and the audience-facing admin-dashboard.md guide.

Scope: admin dashboard only. The consumer app and the marketing landing are mapped separately.

Source of truth: admin_dashboard/src/router.ts. Regenerate this doc whenever a route is added, removed, or its requiresRole meta changes. Render PNG export with cd docs_site && npm run docs:diagrams.

Legend

flowchart LR
  super(["super_admin only"]):::super
  admin(["admin"]):::admin
  mod(["moderator"]):::mod
  support(["support"]):::support
  marketing(["marketing"]):::marketing
  open(["any signed-in admin"]):::open
  gateRole guard:::gate
  pub(["Public route"]):::public

  classDef super fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
  classDef admin fill:#fef3c7,stroke:#d97706,color:#78350f
  classDef mod fill:#dbeafe,stroke:#2563eb,color:#1e3a8a
  classDef support fill:#dcfce7,stroke:#16a34a,color:#14532d
  classDef marketing fill:#fed7aa,stroke:#c2410c,color:#7c2d12
  classDef open fill:#f3e8ff,stroke:#7c3aed,color:#4c1d95
  classDef gate fill:#fce7f3,stroke:#be185d,color:#831843
  classDef public fill:#e0f2fe,stroke:#0284c7,color:#0c4a6e

Color encodes the most restrictive role required to load the route. A view labeled admin is reachable by both super_admin and admin; a view labeled super_admin is reachable only by super_admin. See the route table below for the full requiresRole array on each entry.

super_admin — full access, only role that can load system/demo-data.
admin — operational admin: AI Workforce, analytics, monitoring, moderation, users.
moderator — moderation queue only.
support — user lookup, feedback triage, GDPR queue.
marketing — AI Workforce only (Ops Board, Employee Detail, Run Detail, Agents); cannot reach analytics, moderation, users, or any other admin surface.
Any signed-in admin — Dashboard and system/self-health enforce requiresAuth only; no requiresRole is declared, so any user whose Clerk session resolves to a Me record may load them (in practice the layout itself is gated by Clerk on /).
Public — /sign-in is the only route outside AdminLayout.

Site map

flowchart TD
  Entry["app.objectuve.com (consumer)"]:::ext -->|"/admin bridge"| SignIn

  subgraph Public["Public surface"]
    direction TB
    SignIn(["/sign-in"]):::public
  end

  subgraph Gates["Auth + role guards"]
    direction TB
    ClerkClerk session check (App.vue watch):::gate
    RoleGuardrouter.beforeEach → ME_QUERY.adminRoles:::gate
  end

  subgraph Layout["AdminLayout (sidebar + header)"]
    direction TB

    subgraph Core["Core (any admin)"]
      direction TB
      Dashboard["/ (Dashboard)"]:::open
      SelfHealth["/system/self-health"]:::open
    end

    subgraph People["People & content"]
      direction TB
      Users["/users"]:::support
      Moderation["/moderation"]:::mod
      ContentReports["/content-reports"]:::mod
      CommunityCuration["/communities/curation"]:::admin
      SeasonalEvents["/communities/seasonal-events"]:::admin
      Feedback["/feedback"]:::support
      GdprQueue["/gdpr/queue"]:::support
    end

    subgraph Insights["Insights"]
      direction TB
      Analytics["/analytics"]:::admin
      OnboardingFunnel["/funnel/onboarding"]:::admin
      Monitoring["/monitoring"]:::admin
      BadgeStats["/badges"]:::admin
      Plans["/plans"]:::admin
      AuditLog["/audit-log"]:::admin
    end

    subgraph Workforce["AI Workforce"]
      direction TB
      AIList["/ai-workforce (Ops Board — landing)"]:::marketing
      EmployeeDetail["/ai-workforce/:id"]:::marketing
      RunDetail["/ai-workforce/:employeeId/runs/:runId"]:::marketing
      Agents["/agents"]:::marketing
    end

    subgraph System["System"]
      direction TB
      DemoData["/system/demo-data"]:::super
    end

    Unauthorized["/unauthorized"]:::open
  end

  SignIn --> Clerk
  Clerk -- "no session" --> SignIn
  Clerk -- "session" --> RoleGuard
  RoleGuard -- "role match" --> Dashboard
  RoleGuard -- "role mismatch" --> Unauthorized
  RoleGuard -- "ME_QUERY error" --> SignIn

  Dashboard --> Users
  Dashboard --> Moderation
  Dashboard --> ContentReports
  Dashboard --> CommunityCuration
  Dashboard --> SeasonalEvents
  Dashboard --> Feedback
  Dashboard --> Analytics
  Dashboard --> OnboardingFunnel
  Dashboard --> Monitoring
  Dashboard --> BadgeStats
  Dashboard --> Plans
  Dashboard --> AuditLog
  Dashboard --> AIList
  Dashboard --> Agents
  Dashboard --> GdprQueue
  Dashboard --> SelfHealth
  Dashboard --> DemoData

  AIList --> EmployeeDetail
  EmployeeDetail --> RunDetail

  classDef super fill:#fee2e2,stroke:#b91c1c,color:#7f1d1d
  classDef admin fill:#fef3c7,stroke:#d97706,color:#78350f
  classDef mod fill:#dbeafe,stroke:#2563eb,color:#1e3a8a
  classDef support fill:#dcfce7,stroke:#16a34a,color:#14532d
  classDef marketing fill:#fed7aa,stroke:#c2410c,color:#7c2d12
  classDef open fill:#f3e8ff,stroke:#7c3aed,color:#4c1d95
  classDef gate fill:#fce7f3,stroke:#be185d,color:#831843
  classDef public fill:#e0f2fe,stroke:#0284c7,color:#0c4a6e
  classDef ext fill:#e5e7eb,stroke:#6b7280,color:#1f2937

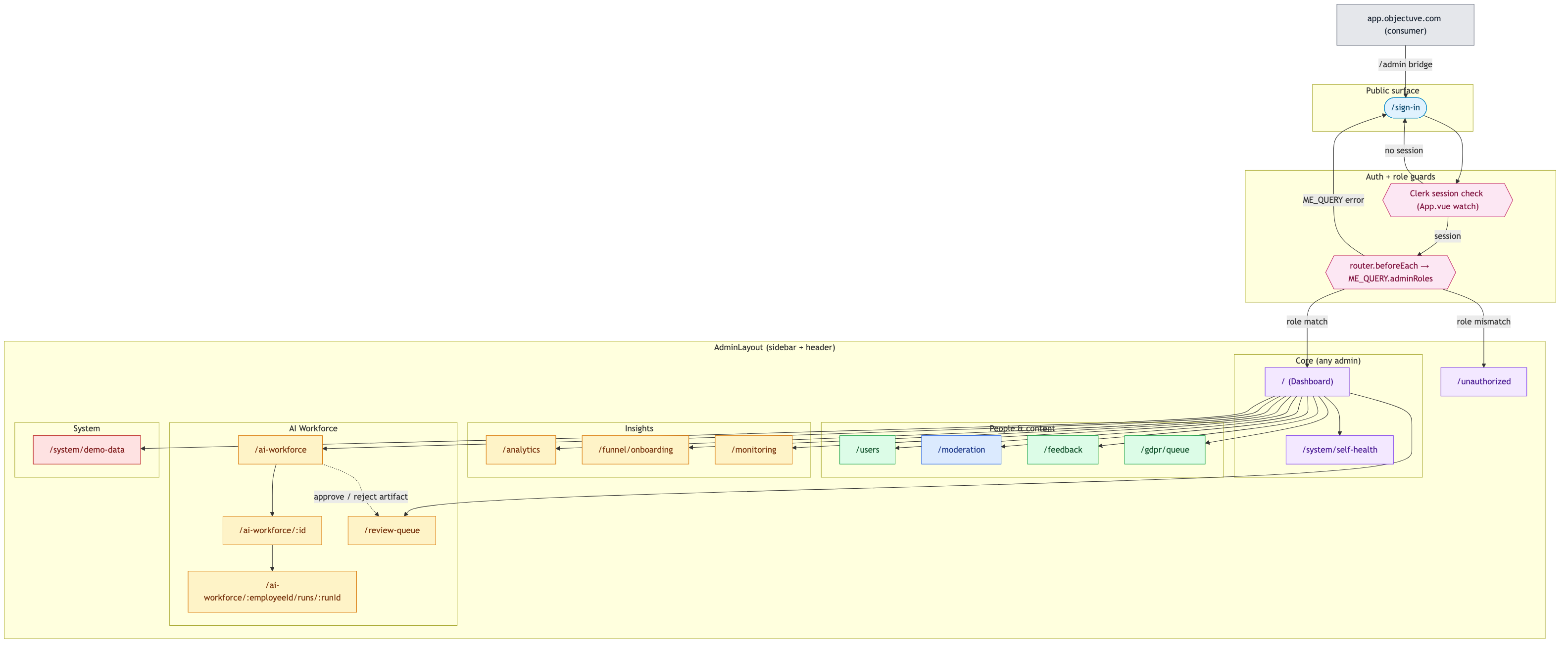

Admin site map

Route table

Authoritative list. Diff against grep -E "path:" admin_dashboard/src/router.ts after any router change.

Component-backed routes

Path	Name	Component	`requiresRole`	Breadcrumb trail
`/`	`dashboard`	`Dashboard.vue`	(auth only)	Dashboard
`/users`	`users`	`UsersView.vue`	`super_admin`, `admin`, `support`	Admin › Users
`/moderation`	`moderation`	`ModerationView.vue`	`super_admin`, `admin`, `moderator`	Admin › Moderation Queue
`/analytics`	`analytics`	`AnalyticsView.vue`	`super_admin`, `admin`	Admin › Analytics
`/funnel/onboarding`	`OnboardingFunnel`	`OnboardingFunnelView.vue`	`super_admin`, `admin`	Admin › Onboarding Funnel
`/monitoring`	`monitoring`	`MonitoringView.vue`	`super_admin`, `admin`	Admin › Monitoring
`/feedback`	`feedback`	`FeedbackView.vue`	`super_admin`, `admin`, `support`	Admin › Feedback
`/ai-workforce`	`AIWorkforce`	`OpsBoardView.vue`	`super_admin`, `admin`, `marketing`	Admin › AI Workforce
`/ai-workforce/:id`	`EmployeeDetail`	`EmployeeDetailView.vue`	`super_admin`, `admin`, `marketing`	Admin › AI Workforce › Employee
`/ai-workforce/:employeeId/runs/:runId`	`RunDetail`	`RunDetailView.vue`	`super_admin`, `admin`, `marketing`	Admin › AI Workforce › Run
`/agents`	`Agents`	`AIWorkforceView.vue`	`super_admin`, `admin`, `marketing`	Admin › AI Workforce › Agents
`/audit-log`	`AuditLog`	`AuditLogView.vue`	`super_admin`, `admin`	Admin › Audit Log
`/badges`	`BadgeStats`	`BadgeStatsView.vue`	`super_admin`, `admin`	Admin › Badge Stats
`/teams/opt-outs`	`TeamsOptOut`	`TeamsOptOutView.vue`	`super_admin`, `admin`	Admin › Team Leaderboard Opt-Outs
`/teams/monitoring`	`TeamsMonitoring`	`TeamsMonitoringView.vue`	`super_admin`, `admin`	Admin › Teams
`/content-reports`	`ContentReports`	`ContentReportsView.vue`	`super_admin`, `admin`, `moderator`	Admin › Content Reports
`/communities/curation`	`CommunityCuration`	`CommunityCurationView.vue`	`super_admin`, `admin`	Admin › Community Curation
`/communities/seasonal-events`	`SeasonalEvents`	`SeasonalEventsView.vue`	`super_admin`, `admin`	Admin › Seasonal Events
`/plans`	`Plans`	`PlansView.vue`	`super_admin`, `admin`	Admin › Plans
`/gdpr/queue`	`GdprQueue`	`GdprQueueView.vue`	`super_admin`, `support`	Admin › GDPR Queue
`/system/self-health`	`self-health`	`SelfHealthView.vue`	(auth only)	Admin › System › Self-Health
`/system/demo-data`	`demo-data`	`DemoDataView.vue`	`super_admin`	Admin › System › Demo Data
`/unauthorized`	`unauthorized`	`UnauthorizedView.vue`	(auth only)	—
`/sign-in`	`sign-in`	`SignIn.vue`	public	—

Redirects (no component)

Path	Redirects to	Why
`/ops-board`	`/ai-workforce`	Pre-cutover board URL (OBJ-1562).
`/review-queue`	`/ai-workforce`	Retired standalone Review Queue (OBJ-1562) — its artifact-review flow now lives in the board's Focus Detail overlay.

Total: 26 routes — 1 public sign-in, 24 nested under AdminLayout (2 of them redirect-only), plus the layout's '' child (Dashboard).

CI-enforced. Drift between this table and router.ts fails the Route Drift workflow. Run locally with cd docs_site && npm run docs:check-routes.

Role × view matrix

A quick read of who can see what. ✓ = role can load the route. Routes that declare no requiresRole (Dashboard, Self-Health, Unauthorized) are reachable by any signed-in user whose Me record resolves.

Route	super_admin	admin	moderator	support	marketing
`/` (Dashboard)	✓	✓	✓	✓	✓
`/users`	✓	✓		✓
`/moderation`	✓	✓	✓
`/analytics`	✓	✓
`/funnel/onboarding`	✓	✓
`/monitoring`	✓	✓
`/feedback`	✓	✓		✓
`/ai-workforce` (+ children, landing)	✓	✓			✓
`/ai-workforce/:id`	✓	✓			✓
`/ai-workforce/:employeeId/runs/:runId`	✓	✓			✓
`/agents`	✓	✓			✓
`/audit-log`	✓	✓
`/badges`	✓	✓
`/teams/opt-outs`	✓	✓
`/teams/monitoring`	✓	✓
`/content-reports`	✓	✓	✓
`/communities/curation`	✓	✓
`/communities/seasonal-events`	✓	✓
`/plans`	✓	✓
`/gdpr/queue`	✓			✓
`/system/self-health`	✓	✓	✓	✓	✓
`/system/demo-data`	✓

Guard mechanics

The role check is a single router.beforeEach in router.ts:171:

If to.meta.requiresRole is absent or empty, allow — Dashboard, Self-Health, Unauthorized, and Sign-In fall into this bucket.
Otherwise run ME_QUERY against Apollo with fetchPolicy: 'cache-first'. Repeat navigations within a session are synchronous (cache hit); the first navigation pays one round-trip.
Read data?.me?.adminRoles (array of strings). If any element of requiresRole is present in adminRoles, allow.
If no role matches, redirect to /unauthorized?attempted=<fullPath>. The attempted query is what UnauthorizedView renders in its "you tried to reach X" message.
If ME_QUERY throws (expired Clerk session, network blip), redirect to /sign-in?redirect=<attempted path> — the user re-authenticates, then lands back where they were headed instead of at the dashboard (OBJ-2534).

The guard runs after App.vue's Clerk watcher has confirmed a session, so a signed-out user never reaches the role check — they're bounced to /sign-in by the auth layer first.

Notes

Dashboard is the de-facto home — every route is reachable from the sidebar in AdminLayout, but no <router-link> enforces a deep-link order. The Mermaid diagram shows Dashboard as the root for orientation only.
AI Workforce employee + run details are sibling routes, not nested under the board. The breadcrumb trail (Admin › AI Workforce › Employee) reconstructs the hierarchy in the UI even though the router treats them as flat siblings.
/ai-workforce is the Live Ops Board (OBJ-1562 route cutover) — the v4.8 unified work-item view over AiEmployee → AiRun → AiArtifact (OpsBoardView.vue) is now the AI Workforce landing. The former agent-grid view (AIWorkforceView.vue — config, filters, trigger/pause) moved to the secondary /agents route rather than being folded into the board. /ops-board and /review-queue are retired, redirect-only aliases; the standalone Review Queue's approve/reject flow now lives in the board's Focus Detail overlay.
marketing is scoped to AI Workforce only (quick task 260904-gj7) — a single-purpose role for marketing-crew reviewers who approve/reject artifacts and monitor employees, without the broader admin role's access to users, moderation, analytics, or other admin surfaces. The router's post-login redirect sends a marketing-only session straight to /ai-workforce rather than / (Dashboard), since Dashboard's own stat cards aren't scoped for a marketing-only viewer.
/system/self-health deliberately has no requiresRole — it's the on-call diagnostic page, intentionally reachable by any admin who can log in. Sensitive operational data lives on /monitoring (admin+) and /system/demo-data (super_admin only).
/admin in the consumer app is the bridge — see the consumer site map and AdminRedirect.vue. It checks me.adminRoles and either redirects to admin.objectuve.com (production) or localhost:4002 (dev), or sends non-admins to /unauthorized on the consumer side.
No deep-link auth bypass — even direct hits to /ai-workforce/abc/runs/xyz pass through the same beforeEach guard before the view loads.

For the consumer app sitemap and user flows, see site-map.md and user-flows.md.

Last updated: 2026-09-04
