Site Map

Hierarchical map of every page in the consumer app. Companion to user-guide.md (prose reference) and user-flows.md (step-by-step journeys).

Scope: consumer app only (ionic_frontend/). The admin dashboard is mapped in admin-site-map.md; the marketing landing is mapped in marketing-site-map.md.

Source of truth: ionic_frontend/src/router/index.ts. Regenerate this doc whenever a route is added, removed, or its guard changes. Render PNG export with cd docs_site && npm run docs:diagrams.

---

Legend

flowchart LR
  pub(["Public route"]):::public
  auth["Authenticated route"]:::authed
  gateGate / Guard:::gate
  redir["Redirect"]:::redirect

  classDef public fill:#e0f2fe,stroke:#0284c7,color:#0c4a6e
  classDef authed fill:#fef3c7,stroke:#d97706,color:#78350f
  classDef gate fill:#fce7f3,stroke:#be185d,color:#831843
  classDef redirect fill:#e5e7eb,stroke:#6b7280,color:#1f2937

• Public — meta.public: true. No Clerk session required.
• Authenticated — guarded by router.beforeEach. No session → redirected to /sign-in?redirect=….
• Gate — additional beforeEnter or evaluateOnboardingGate may redirect even authenticated users.
• Redirect — redirect: entry in the router, no component.

---

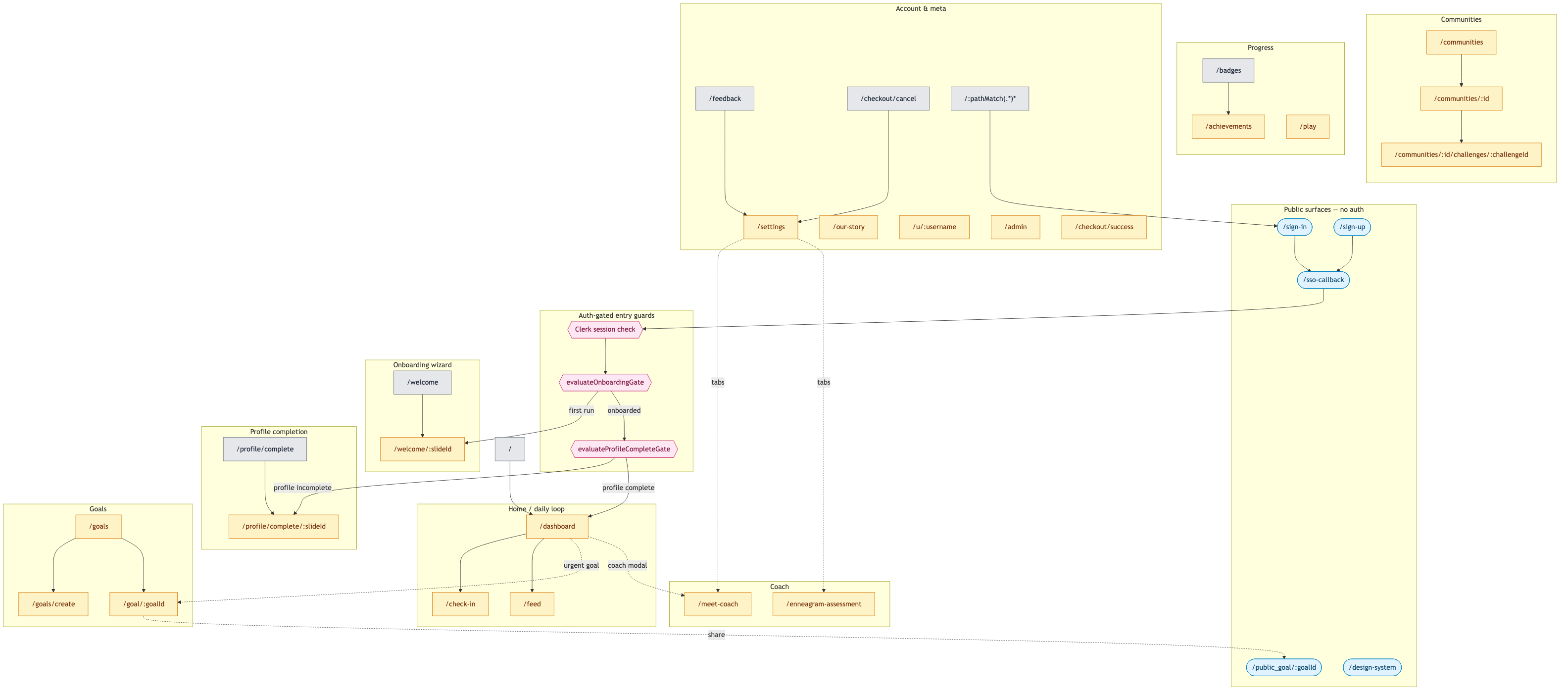

Site map

flowchart TD
  Root["/"]:::redirect --> Dashboard

  subgraph Public["Public surfaces — no auth"]
    direction TB
    SignIn(["/sign-in"]):::public
    SignUp(["/sign-up"]):::public
    SsoCallback(["/sso-callback"]):::public
    PublicGoal(["/public_goal/:goalId"]):::public
    DesignSystem(["/design-system"]):::public
    InviteAccept(["/invite/:token"]):::public
    AccountDeleted(["/account-deleted"]):::public
  end

  subgraph Gates["Auth-gated entry guards"]
    direction TB
    AuthGuardClerk session check:::gate
    OnboardingGateevaluateOnboardingGate:::gate
    ProfileGateevaluateProfileCompleteGate:::gate
  end

  subgraph Onboarding["Onboarding wizard"]
    direction TB
    WelcomeRedir["/welcome"]:::redirect --> WelcomeSlide
    WelcomeSlide["/welcome/:slideId"]:::authed
  end

  subgraph Profile["Profile completion"]
    direction TB
    ProfileRedir["/profile/complete"]:::redirect --> ProfileSlide
    ProfileSlide["/profile/complete/:slideId"]:::authed
  end

  subgraph Home["Home / daily loop"]
    direction TB
    Dashboard["/dashboard"]:::authed
    CheckInRedir["/check-in"]:::redirect
    Feed["/feed"]:::authed
  end

  subgraph Goals["Goals"]
    direction TB
    GoalsList["/goals"]:::authed
    GoalCreate["/goals/create"]:::authed
    GoalDetail["/goal/:goalId"]:::authed
  end

  subgraph Communities["Communities"]
    direction TB
    CommList["/communities"]:::authed
    CommDetail["/communities/:id"]:::authed
    Challenge["/communities/:id/challenges/:challengeId"]:::authed
  end

  subgraph Progress["Progress"]
    direction TB
    Achievements["/achievements"]:::authed
    BadgesRedir["/badges"]:::redirect --> Achievements
    Play["/play"]:::authed
  end

  subgraph Coach["Coach"]
    direction TB
    CoachPage["/coach"]:::authed
    MeetCoach["/meet-coach"]:::authed
    Enneagram["/enneagram-assessment"]:::authed
  end

  subgraph Account["Account & meta"]
    direction TB
    Settings["/settings"]:::authed
    OurStory["/our-story"]:::authed
    PublicProfile["/u/:username"]:::authed
    AdminBridge["/admin"]:::authed
    CheckoutSuccess["/checkout/success"]:::authed
    NotificationHistory["/notifications"]:::authed
    FeedbackRedir["/feedback"]:::redirect --> Settings
    CheckoutCancelRedir["/checkout/cancel"]:::redirect --> Settings
    CatchAll["/:pathMatch(.*)*"]:::redirect --> SignIn
  end

  SignIn --> SsoCallback --> AuthGuard
  SignUp --> SsoCallback
  AuthGuard --> OnboardingGate
  OnboardingGate -- "first run" --> WelcomeSlide
  OnboardingGate -- "onboarded" --> ProfileGate
  ProfileGate -- "profile incomplete" --> ProfileSlide
  ProfileGate -- "profile complete" --> Dashboard

  CheckInRedir --> CoachPage
  Dashboard --> Feed
  Dashboard -. "urgent goal" .-> GoalDetail
  Dashboard -. "coach modal" .-> MeetCoach

  GoalsList --> GoalCreate
  GoalsList --> GoalDetail
  GoalDetail -. "share" .-> PublicGoal

  CommList --> CommDetail --> Challenge

  Settings -. "tabs" .-> MeetCoach
  Settings -. "tabs" .-> Enneagram

  classDef public fill:#e0f2fe,stroke:#0284c7,color:#0c4a6e
  classDef authed fill:#fef3c7,stroke:#d97706,color:#78350f
  classDef gate fill:#fce7f3,stroke:#be185d,color:#831843
  classDef redirect fill:#e5e7eb,stroke:#6b7280,color:#1f2937

---

Route table

The authoritative list. Diff against grep -E "path:" ionic_frontend/src/router/index.ts after any router change.

Component-backed routes

Path	Name	Component	Auth	Gate	User-guide section
/sign-in	SignIn	SignIn.vue	public	—	§1 Creating your account
/sign-up	SignUp	SignUp.vue	public	—	§1 Creating your account
/sso-callback	SsoCallback	SsoCallback.vue	public	—	—
/dashboard	Dashboard	Dashboard.vue	auth	onboarding	§2 Your dashboard
/analytics	PersonalAnalytics	AnalyticsView.vue	auth	personal_analytics_enabled flag guard	—
/feed	ActivityFeed	ActivityFeed.vue	auth	onboarding	§9 Feed and social
/goals	Goals	Goals.vue	auth	onboarding	§4 Goals
/goals/create	GoalCreate	GoalCreate.vue	auth	onboarding	§4 Creating a goal
/goals/create/quiz	GoalDiscoveryQuiz	GoalDiscoveryQuizView.vue	auth	goal_quiz_enabled flag guard	—
/goal/:goalId	goal	Goal.vue	auth	onboarding	§4 Goal detail page
/communities	Communities	Communities.vue	auth	onboarding	§11 Communities
/communities/:id	Community	Community.vue	auth	onboarding	§11 Community detail page
/communities/:id/challenges/:challengeId	ChallengeLeaderboard	ChallengeLeaderboard.vue	auth	onboarding	§11 Communities
/achievements	Achievements	Achievements.vue	auth	onboarding	§10 Achievements, XP, and ranks
/events/:id	SeasonalEvent	SeasonalEventView.vue	auth	onboarding	— (v4.63 Phase 9 — behind seasonal_events_enabled; flag-off renders the same "not found" state as a bad link)
/public_goal/:goalId	publicGoal	PublicGoal.vue	public	—	§4 Public goals
/admin	AdminRedirect	AdminRedirect.vue	auth	onboarding	— (bridges to admin_dashboard SPA)
/settings	Settings	Settings.vue	auth	onboarding	§15 Settings and profile
/settings/connected-apps	ConnectedApps	ConnectedAppsView.vue	auth	—	— (v4.14 Phase 5 — Connected Apps list: connect/disconnect/pause/resume)
/settings/connected-apps/:provider/mappings	ManageMappings	ManageMappingsView.vue	auth	—	— (v4.14 Phase 5 — Connected Apps mapping management)
/settings/blocked	BlockedUsers	BlockedUsersPage.vue	auth	onboarding	§16 Blocked users
/settings/import	DataImport	DataImportPage.vue	auth	data_import_enabled flag guard	— (v4.64 Phase 5 — CSV import: pick a file, review, commit, summary)
/our-story	OurStory	OurStory.vue	auth	onboarding	—
/checkout/success	CheckoutSuccess	CheckoutSuccess.vue	auth	onboarding	§14 Supporter tier
/design-system	DesignSystem	DesignSystem.vue	public	—	—
/coach	Coach	Coach.vue	auth	onboarding	§7 Meet your Coach
/meet-coach	MeetCoach	MeetCoach.vue	auth	onboarding	§7 Meet your Coach
/u/:username	PublicProfile	PublicProfile.vue	auth	onboarding	—
/enneagram-assessment	EnneagramAssessment	EnneagramAssessment.vue	auth	onboarding	§7 Meet your Coach
/coaching/type	EnneagramTypeDetail	EnneagramTypeDetail.vue	auth	onboarding	§7 Meet your Coach
/play	Play	PlayView.vue	auth	onboarding	—
/welcome/:slideId	WelcomeSlide	WelcomeView.vue	auth	meta.onboarding	§1 Onboarding
/profile/complete/:slideId	CompleteProfileSlide	CompleteProfileView.vue	auth	evaluateProfileCompleteGate	—
/allies	Allies	AlliesPage.vue	auth	ally-request-flow-enabled flag guard	—
/allies/discover	AllyDiscover	AllyDiscoveryPage.vue	auth	ally-request-flow-enabled flag guard	—
/allies/pending	AllyPendingInbox	PendingAllyRequestsPage.vue	auth	ally-request-flow-enabled flag guard	—
/invite/:token	InviteAccept	PartnerInvitePage.vue	public	partner-invite-enabled	—
/teams/new	CreateTeam	CreateTeamView.vue	auth	—	—
/join-team/:code	JoinTeam	JoinTeamView.vue	public	—	—
/team-home	TeamHome	TeamHomeView.vue	auth	—	—
/team-settings (alias /teams/settings, the latter baked into CreateTeamView.vue's Stripe redirect)	TeamSettings	TeamSettingsView.vue	auth	—	—
/team-leaderboard (alias /teams/leaderboard)	TeamLeaderboard	TeamLeaderboardView.vue	auth	teams_leaderboards flag guard	—
/notifications	NotificationHistory	NotificationHistory.vue	auth	onboarding	—
/account-deleted	AccountDeleted	AccountDeleted.vue	public	evaluateAccountDeletedGate — in-memory post-deletion flag only, set by the self-service deletion flow; unset (fresh boot, refresh, deep link) redirects to /sign-in	— (OBJ-3059 — terminal screen at the end of self-service account deletion, App Store Guideline 5.1.1(v))

Redirects (no component)

Path	Target	Why
/	/dashboard	Default landing for signed-in users
/badges	/achievements	Legacy URL alias
/check-in	/coach	/check-in → /coach migration (PR #915); CheckIn.vue removed
/feedback	/settings?tab=feedback	Deep-link into Settings feedback tab
/checkout/cancel	/settings?tab=supporter	Stripe cancel → return to upgrade tab
/welcome	/welcome/:slideId (resumes mid-flow via firstSlideId())	Onboarding resume
/profile/complete	/profile/complete/:slideId (about by default)	Profile-completion entry
/:pathMatch(.*)*	/sign-in	Catch-all 404 → sign-in

Total: 40 component-backed routes + 8 redirects = 48 entries in the routes array.

CI-enforced. Drift between this table and router/index.ts fails the Route Drift workflow. Run locally with cd docs_site && npm run docs:check-routes.

---

Notes

• All authenticated routes also pass through evaluateOnboardingGate. A user who has not finished onboarding is redirected to /welcome/:slideId regardless of which route they hit. The welcome path itself is exempt (D-05 in router/index.ts) to prevent redirect loops.
• /profile/complete* has its own beforeEnter guard (evaluateProfileCompleteGate) that bounces users with already-complete profiles to /settings. This is the one route group that runs a second gate after beforeEach.
• Admin role guard is hooked via to.meta.requiredRole === 'admin'. No route currently sets it; admin-only surfaces live in the separate admin_dashboard/ SPA, mapped in admin-site-map.md. /admin here is a bridge that redirects users into that SPA.
• /u/:username is not flagged public in the router despite being conceptually a public profile page. Signed-out visitors hitting it are sent to /sign-in. If public access is desired, add meta: { public: true }.

For visual journeys through these routes (sign-up, daily check-in, goal lifecycle, coach setup), see user-flows.md.

---

Last updated: 2026-09-19 (footer currency fix, OBJ-4028 atlas sweep — a 3-run chronic gap; content last changed 2026-09-18, PR #3328, adding the /events/:id SeasonalEvent route row)
